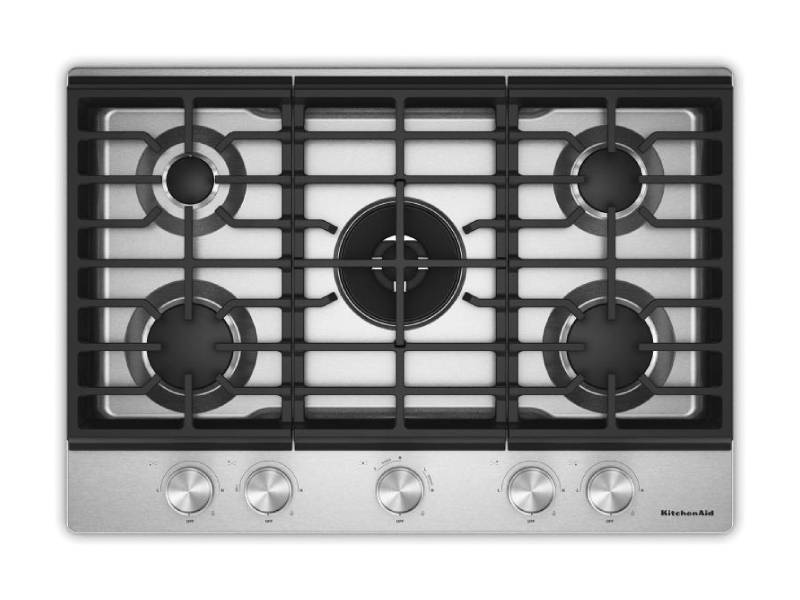

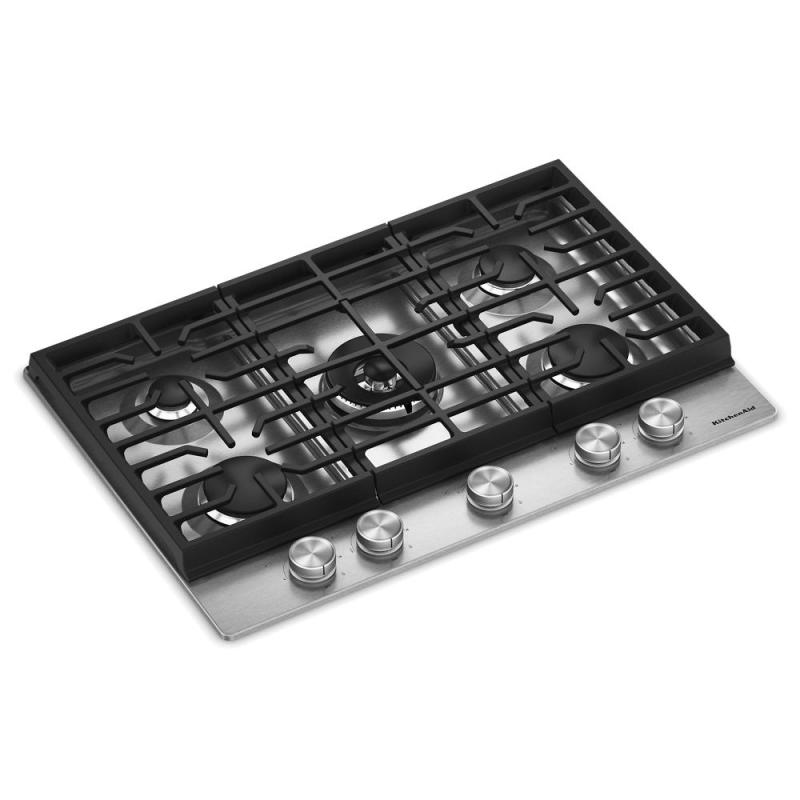

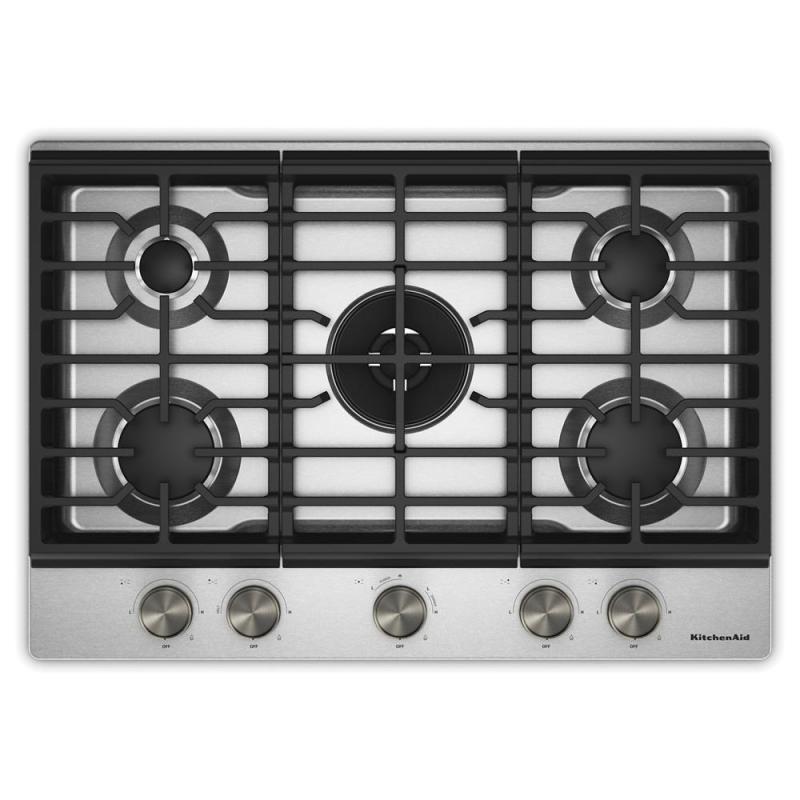

30" KitchenAid Gas-on-Metal Cooktop with an Integrated Wok Grate - KCGK530SSS

Top Features
Integrated Wok Grate
lets you experience high-heat wok cooking with authentic stir-fry flavor right at home. The removable grate seamlessly allows you to nestle a round-bottom wok directly into the burner's flames so you can flash-sear garlic shrimp, toss spicy beef or caramelize crisp vegetables in minutes.
Designed to be Personalized
with a curated palette of exterior finishes and mixed metal hardware. Pick from lush Juniper, warm Black Ore and classic Stainless Steel finishes, all with matching knobs. Personalize your hardware with optional knob accessory kits in Brass, Bronze, Black Ore and Stainless Steel.
Premium Weighted Knobs
offer an enhanced, tactile feel when controlling your cooktop.
Additional Features
17,000 BTU Professional Dual Ring Burner
allows you to go from one small flame for precise simmering to a dual flame for powerful boiling, all on the same burner.
Edge-to-Edge Cast-Iron Grates
enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface. Wash these Cast-Iron Grates right in the dishwasher when they get messy.
Wall Oven Compatible
install this cooktop above a wall oven or on its own for more flexibility
6,000 BTU Simmer Burner
allows control of the flame at the lowest setting, for precise simmering and melting.
Electronic Ignition
automatically lights burners so no standing pilot light is needed.
Sealed Burners
prevent crumbs, spills and boilovers from falling into the cooktop interior, making cleanup easy.
ADA Compliant
this appliance meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
LP Conversion Kit
allows you to convert the cooktop so it can be used with liquid propane

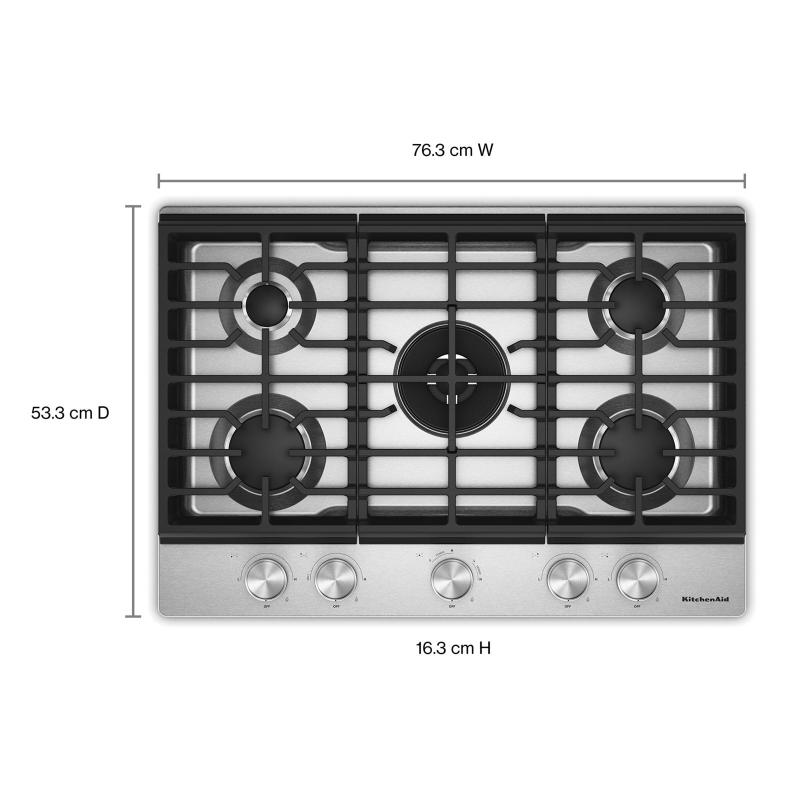

| Dimensions | |
|---|---|
| Depth | 20.98 " |
| Width | 30.02 " |
| Height | 6.42 " |
| Net Weight | 53 lbs |
| Carton Depth Inch | 25.0 " |
| Carton Height Inch | 13.0 " |
| Carton Width Inch | 35.0 " |
| Cutout Depth | 19.81 " |
| Cutout Height | 5.0 " |
| Cutout Width | 28.88 " |
| Maximum Height | 6.3 " |
| Minimum Height | 6.16 " |
| Features | |
| Power Outage Compatible | Yes |
| Griddle | No, Optional Accessory |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| LP Convertible | Yes - Kit Included |
| Digital Display | No |
| Automatic Pan Detection | No |
| Automatic Pan Size Adjustment | No |
| Downdraft Vent | No |
| Installs Over Built In Oven | Yes |
| Power Boost | No |
| Cooktop Details | |
| Left Rear Element Burner Type | Melt / Simmer |
| Number of Burner | 5 |
| Right Front Element Burner Power | 10000BTU |
| Right Front Element Burner Type | High Output |
| Right Rear Element Burner Power | 7000BTU |
| Right Rear Element Burner Type | Semirapid |
| Left Rear Element Burner Power | 6000BTU |
| Center Element Burner Power | 17000BTU |
| Cooktop Configuration | All Burners |
| Cooktop Element Style | Sealed Burners |
| Left Front Element Burner Power | 10000BTU |
| Left Front Element Burner Type | High Output |
| Description | |
| Combinations With Oven | KOES430R KOES527P KOES530P KOES530S KOES630S KOES727S KOES730P KOES730S KOES930S KOSE500E KOSE507E KOSE900 KOSE900H |
| Cooktop Type | Traditional |
| Size In | 30 |
| Electrical | |
| 208v Compatible | No |
| Volts | 120 |
| Amps | 15 |
| Power Cord Included | Yes |
| Hz | 60 |
| Specifications | |
| Aesthetic | New Design |
| Customizable | Yes |
| Country Of Origin | USA |
| Launch Date | April 2026 |
| Certifications | |
| ADA Compliant | Yes |
| UL | Yes |
| CONTROLS | |
| Control Location | Front |
| Control Type | Manual |
| Knob Type | Premium Weighted |
| Configuration and Overview | |
| Heating Technology | Gas |
