36" KitchenAid 22 Cu. Ft. Panel-Ready Counter-Depth French Door Refrigerator - KRFC136TPA

Top Features
Preserva® Food Care System
helps keep ingredients fresh and flavorful. This single evaporator system uses sensors to continually monitor temperature levels in both the refrigerator and freezer and adapts the flow of cold air between them to maintain optimal temperatures throughout.
Internal Water Dispenser
provides convenient access to filtered water while maintaining the refrigerator's clean lines and sleek exterior design.
FreshChill™ Temperature-Controlled Full-Width Pantry
has a manual setting so you can customize and maintain the freshness of your ingredients. From a tri-tip to a large rhubarb from the farmer's market, you have control over how much cool air enters the drawer.
Additional Features
Produce Preserver
helps delay over-ripening to extend freshness of fruits and vegetables. This replaceable filter for crisper drawers absorbs the ethylene gas produced as part of the natural ripening process for up to 6 months.
FreshSeal™ Humidity-Controlled Crispers
help keep your produce fresh and crisp using FreshSeal™ gaskets that maintain optimal humidity levels inside the crisper bins.
Panel-Ready Design
allows you to install custom front panels and handles (not included) over refrigerator doors to create a seamless look with kitchen cabinetry.
Counter-Depth Design
fits with surrounding cabinetry, creating a built-in appearance while freeing up more space in the kitchen.
Ultra-Bright LED Lighting
turns on when the refrigerator or freezer door is open, making it easy to find items inside.
Automatic Ice Maker
ensures you have a continuous supply of fresh filtered ice for everyday beverages and entertaining.
Max Cool
helps quickly chill recently loaded groceries by setting the refrigerator compartment to the lowest temperature level for up to 24 hours.
Wood-Look Nesting Shelf
adjusts to accommodate items of different heights. Lower the shelf to hold short items like a pint of berries, jam jars or yogurt cups. When not needed, it nests into the shelf above, making room for tall items like wine bottles and freshly squeezed juice.

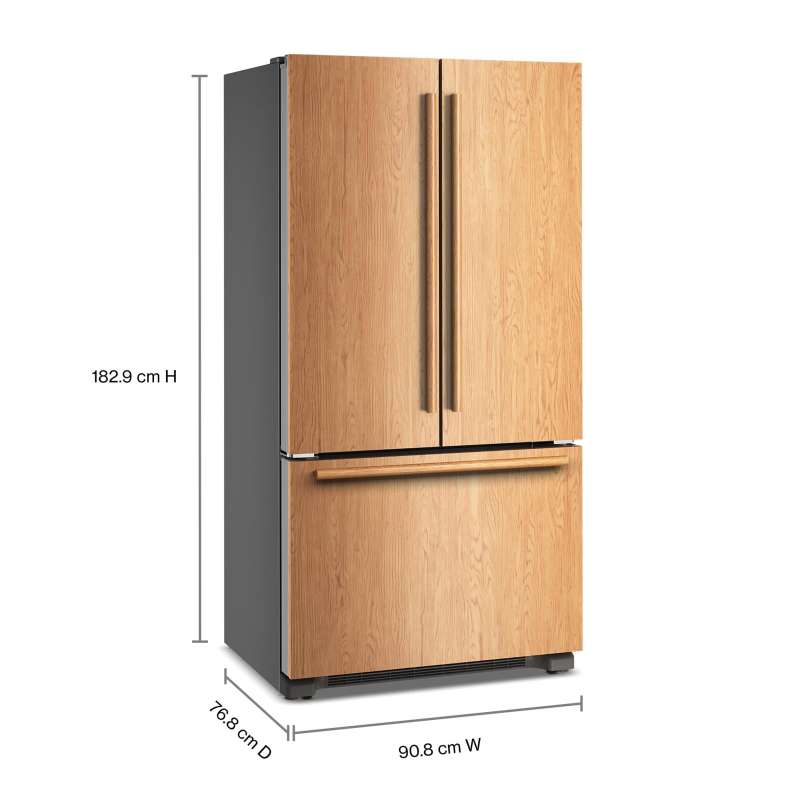

| Dimensions | |
|---|---|
| Depth | 30.25 " |
| Width | 35.75 " |
| Height | 72.0 " |
| Carton Depth | 32.3 " |
| Carton Height | 75.8 " |
| Carton Width | 38.3 " |
| Depth With Door Open 90 Degree | 44.13 " |
| Gross Weight | 306.0 lbs |
| Net Weight | 286.0 lbs |
| Cabinet Width | 35.63 " |
| Cutout Height | 72.0 " |
| Cutout Width | 36.0 " |
| Popular Height | 71 Inch Tall or Higher |
| Popular Width | 36 Inch Wide |
| Depth Closed Excluding Handles | 27.75 " |
| Depth Closed Including Handles | 30.25 " |
| Depth Excluding Doors | 24.63 " |
| Height To Top Of Cabinet | 71.38 " |
| Height To Top Of Door Hinge | 72.0 " |

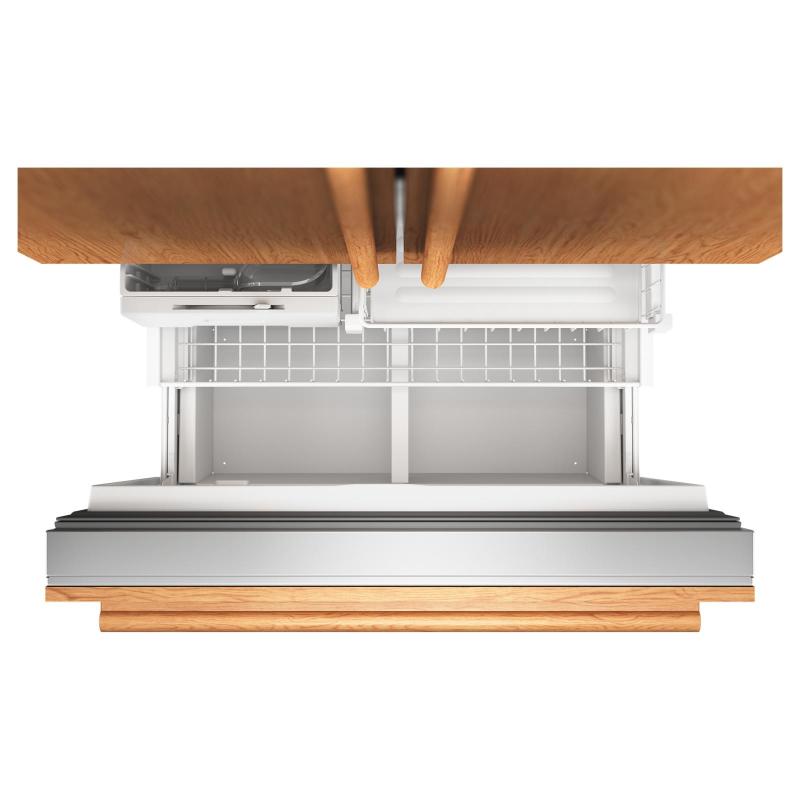

| Freezer compartment | |
| Door Type | Pull-Out |
| Door Bins | No |
| Freezer Drawer Basket | 1 Full Width Lower Plastic 1 Half Width Upper Wire |
| Freezer Number Of Shelves | None |
| Light | Yes |
| Dispenser | |
| Dispenser Options | Filtered Water |
| Dispenser Type | Interior Water Only |
| Types Of Ice | Cubed |
| Exterior | |
| Base Grille Color | Grey |
| Cabinet Color | Grey |
| Cabinet Finish | Textured |
| Door Style | Flat |
| Hidden Hinge | Yes |
| Number Of Doors | 3 |
| Reversible Door | N/A |
| Handle Color | Stainless Steel |
| Handle Material | Stainless Steel |
| Handle Type | Reach-Through Handle |
| Filters | |
| Fresh Flow Air Filter Included | No |
| Produce Preserver | Yes |

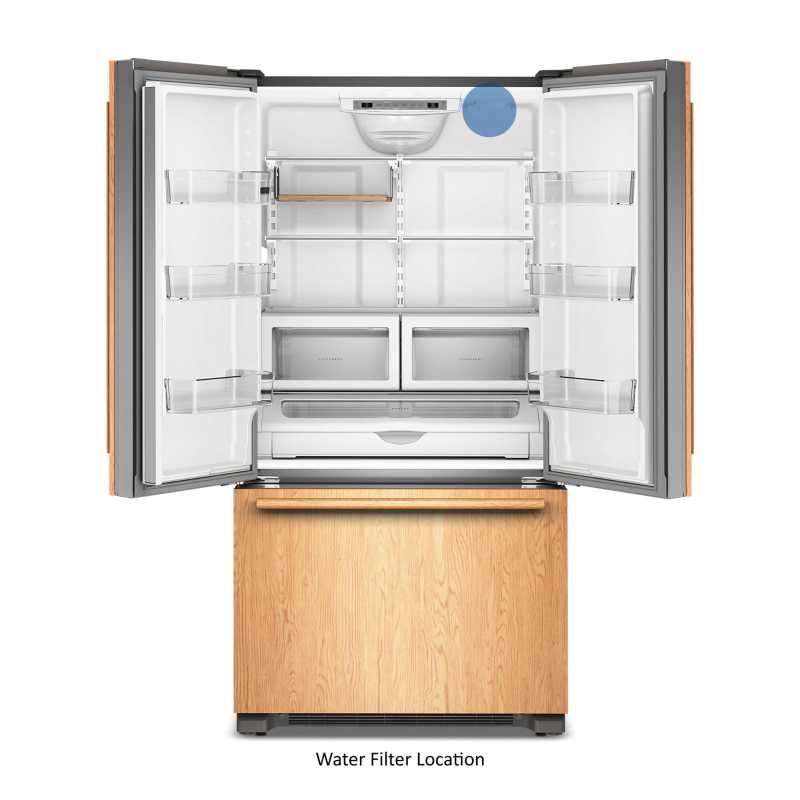

| Water Filter Location | Interior |
| Water Filter Part Number | EDRARXD1 |
| Details | |
| Counter Depth | Yes |
| Cooling Type | Single Evaporator |
| Icemaker | |
| Icemaker | Yes |
| Icemaker Location | Freezer |
| Refrigerator compartment | |
| Conventional Shelves | 1 Fixed Full-Width Glass 1 Nesting Shelf 4 Adjustable Half-Width Glass |
| Deli Drawer | No |
| Door Bins | 2 Fixed Full-Width Gallon 4 Adjustable Full-Width |
| Humidity Controlled Drawers | Yes |
| Lighting | LED |
| Liner Finish | White |
| Number Of Interior Shelves | 6 |
| Pantry Drawer | Yes |
| Temperature Controlled Drawers | 1 Full-Width Pantry |
| Specifications | |
| Extended Service Plan Parent | EW09IW1Y, EW09IW2Y, EW09IW4Y |
| Aesthetic | New Design |
| Customizable | No |
| Country Of Origin | USA |
| Optional Accessories | EDR4RXD1B |
| Launch Date | December 2025 |
| Fingerprint Resistant | No |
| Certifications | |
| ADA Compliant | No |
| Cee Tier | Not Rated |
| Energy Star Qualified | No |
| UL | Yes |
| Energy Rating Kwh Year | 633 |
| Ule Environmentally Preferred Certified | Yes |
| CONTROLS | |
| Control Location | Interior Up Front |
| Control Lockout | No |
| Door Ajar Open Alarm | Yes |
| Max Cool Fast Cool | Yes |
| Sabbath Mode | Yes |
| Water Filter Indicator Reset | Yes |
| Electrical | |
| Amps | 20 |
| Volts | 120 |
| AHAM Volumes And Shelf Area | |
| Freezer Volume Cu Ft | 5.59 |
| Refrigerator Volume Cu Ft | 16.35 |
| Total Volume Cu Ft | 21.9 |
| Configuration | |
| Installation Configuration | Freestanding |
| Description | |
| Type Of Refrigerator | French Door |
