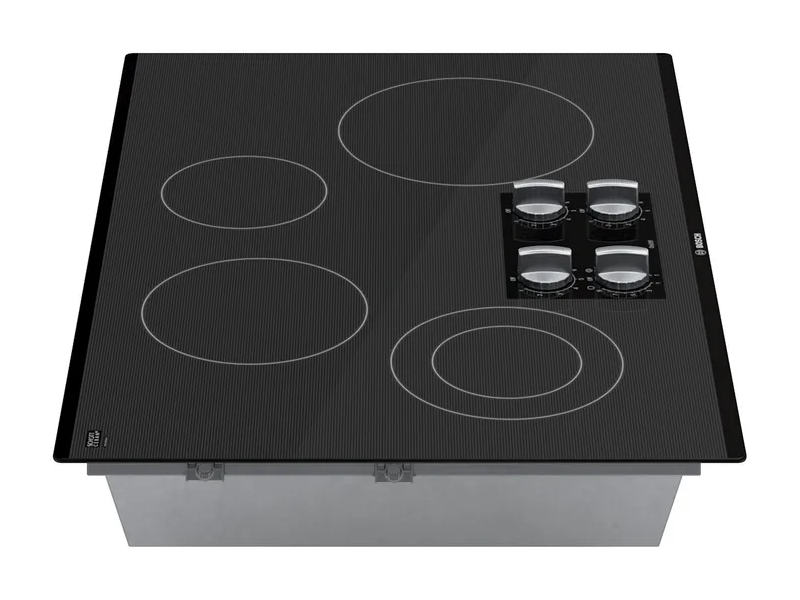

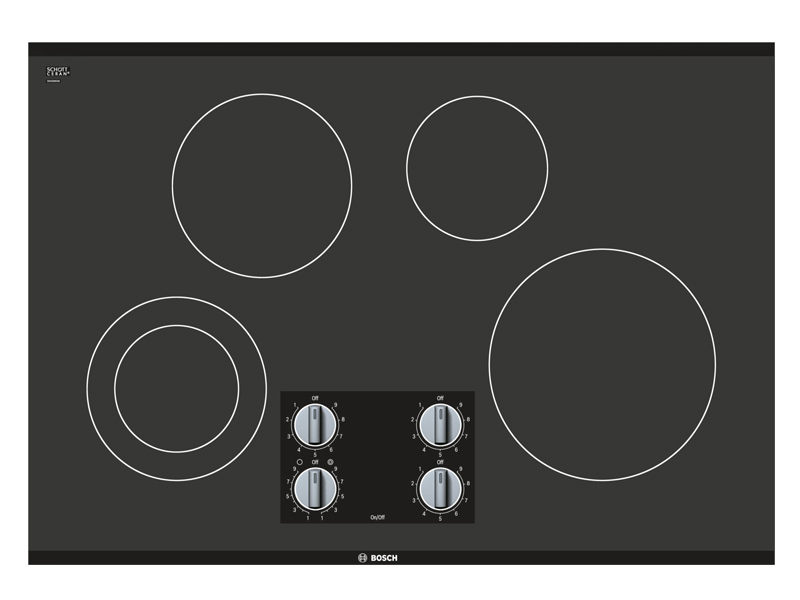

30" Bosch 500 Series Black Frameless Electric Cooktop - NEM5066UC
Literature
Highlights
Select your ideal temperature
The precise temperature selection results in consistent, perfect results whether you’re searing a steak, grilling salmon or veggies, or delicately melting chocolate.

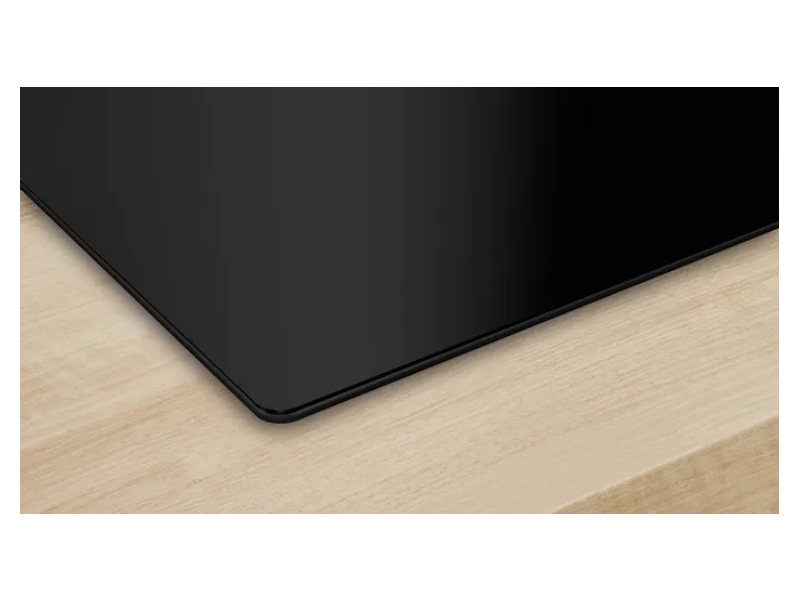

Ceremic Glass
Ceramics glass is much more slim and durable with better vertical conduction.
Know when the surface is hot
For added safety, the control panel also has a heat indicator to let you know which sections are still hot after you finish cooking. Once the surface reaches a safe temperature, the indicator turns off.
Accomodate different pan sizes
The Dual Cooking Element offers different sized elements to accomodate different sized pots and pans.
Special Features
- Precise Temperature Control:select your ideal temperature for precise cooking control.
- Ceramic Glass:this smooth surface makes cooking and cleaning especially easy.
- Push-to-turn control knobs.
- Dual Cooking Element:offers different sized elements to accomodate different sized pots and pans.
| Specifications | |
|---|---|
| Number of Burner | 4 |
| Power of 1st heating element (W) | 0.7 ; 1.7 kW |
| Dimension of 1st heating element (in) | 7"; 5" |
| Location of 1st heating element | front left |
| Knob Material | Plastic |
| Location of 2nd heating element | back left |
| Power of 2nd heating element (W) | 1.8 kW |
| Dimension of 2nd heating element (in) | 7" |
| Location of 3rd heating element | back right |
| Power of 3rd heating element (W) | 1.2 kW |
| Dimension of 3rd heating element (in) | 6" |
| Location of 4th heating element | front right |
| Power of 4th heating element (W) | 2.5 kW |
| Dimension of 4th heating element (in) | 9" |
| Sealed Burners | No |
| Approval certificates | CSA |
| Watts (W) | 7,200 W |
| Current (A) | 30/30 A |
| Volts (V) | 240/208 V |
| Frequency (Hz) | 60 Hz |
| Plug type | No plug |
| Heating Technology | Electric |
| Overall appliance dimensions (HxWxD) (in) | 1/4"+4" x 31" x 21 1/4" |
| Required cutout size (HxWxD) (in) | 4" x 28 7/8" x 20" |
| Product packaging dimensions (HxWxD) (in) | 7 7/8" x 37 3/8" x 24" |
| Minimum distance from counter front (in) | 2 1/4" |
| Minimum distance from rear wall (in) | 2" |
| Net weight (lbs) | 25 lbs |
| Gross weight (lbs) | 34 lbs |
